OAuth2 Proxy

Add user authentication with GitHub, Google, Azure AD, and other OAuth providers by integrating agentgateway with OAuth2 Proxy.

Agentgateway can integrate with OAuth2 Proxy to add user authentication through GitHub, Google, Azure AD, and other OAuth providers. Agentgateway uses an external authorization (extAuthz) policy to delegate authentication checks to OAuth2 Proxy, which redirects unauthenticated users to the provider’s login page.

This guide uses GitHub as the example provider. For other providers, see Use other OAuth providers.

Before you begin

Install agentgateway.
Install Docker and make sure it is running.
Have a GitHub account so that you can create an OAuth app.

Step 1: Create a GitHub OAuth application

Go to GitHub Developer Settings.
Click OAuth Apps > New OAuth App.
Fill in the application details.
- Application name: agentgateway dev, or any name you choose.
- Homepage URL: http://localhost:3000
- Authorization callback URL: http://localhost:4180/oauth2/callback
Click Register application.
Copy the Client ID.
Click Generate a new client secret and copy the Client Secret.

Step 2: Set up your environment

Create a working directory.

mkdir oauth2-proxy-test && cd oauth2-proxy-test

Save your GitHub OAuth credentials as environment variables.

export OAUTH2_PROXY_CLIENT_ID=<your-github-client-id>
export OAUTH2_PROXY_CLIENT_SECRET=<your-github-client-secret>

Generate a random cookie secret.

export OAUTH2_PROXY_COOKIE_SECRET=$(python3 -c 'import os,base64; print(base64.b64encode(os.urandom(32)).decode()[:32])')

Step 3: Start OAuth2 Proxy

Run OAuth2 Proxy in Docker.

docker run -d --name oauth2-proxy \
  -p 4180:4180 \
  --add-host=host.docker.internal:host-gateway \
  -e OAUTH2_PROXY_CLIENT_ID=$OAUTH2_PROXY_CLIENT_ID \
  -e OAUTH2_PROXY_CLIENT_SECRET=$OAUTH2_PROXY_CLIENT_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECRET=$OAUTH2_PROXY_COOKIE_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECURE=false \
  quay.io/oauth2-proxy/oauth2-proxy:latest \
  --provider=github \
  --email-domain='*' \
  --upstream=file:///dev/null \
  --http-address=0.0.0.0:4180 \
  --set-xauthrequest \
  --reverse-proxy=true

Verify that OAuth2 Proxy is running.

docker logs oauth2-proxy

Example output:

[2026/08/06 20:34:54] [oauthproxy.go:180] OAuthProxy configured for GitHub Client ID: $OAUTH2_PROXY_CLIENT_ID

Step 4: Configure agentgateway

Create a config.yaml file. The configuration routes /oauth2/* requests to OAuth2 Proxy for login and callback handling, and protects the MCP application with an extAuthz policy that checks authentication and extracts the user’s identity.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  accessLog:
    add:
      # Log the authenticated user's GitHub username and email
      github.user: 'extauthz.githubUser'
      github.email: 'extauthz.githubEmail'

gateways:
  default:
    port: 3000
    protocol: HTTP
routes:
# Route OAuth2 Proxy endpoints (login, callback, and so on)
- name: oauth2-proxy
  matches:
  - path:
      pathPrefix: /oauth2
  policies:
    urlRewrite:
      authority: none
  backends:
  - host: localhost:4180

# Protected MCP application
- name: application
  backends:
  - mcp:
      targets:
      - name: everything
        stdio:
          cmd: npx
          args: ["@modelcontextprotocol/server-everything"]
  policies:
    cors:
      allowOrigins: ["*"]
      allowHeaders: ["*"]
      exposeHeaders: ["Mcp-Session-Id"]
    extAuthz:
      host: localhost:4180
      includeRequestHeaders:
      - cookie
      protocol:
        http:
          # Check authentication status
          path: '"/oauth2/auth"'
          # Redirect unauthenticated users to login
          redirect: '"/oauth2/start?rd=" + request.path'
          # Extract user info from OAuth2 Proxy response headers
          metadata:
            githubUser: response.headers["x-auth-request-user"]
            githubEmail: response.headers["x-auth-request-email"]
          addRequestHeaders:
            x-forwarded-host: request.host
          includeResponseHeaders:
          - x-auth-request-user

Review the following table to understand this configuration.

Setting	Description
`frontendPolicies.accessLog.add`	Logs the GitHub username and email from authenticated requests.
`routes` (`oauth2-proxy`)	Routes `/oauth2/*` requests to OAuth2 Proxy for login and callback handling.
`routes` (`application`)	The protected MCP endpoint with external authorization.
`extAuthz.host`	The OAuth2 Proxy address for authentication checks.
`extAuthz.protocol.http.path`	The endpoint that OAuth2 Proxy uses to validate authentication.
`extAuthz.protocol.http.redirect`	Where to send unauthenticated users.
`extAuthz.protocol.http.metadata`	Extracts user information from the OAuth2 Proxy response headers.

Start agentgateway
```
agentgateway -f config.yaml
```

Step 6: Test the authentication flow

Send an unauthenticated request. Because the request has no session cookie, agentgateway redirects it to the login flow.
```
curl -i http://localhost:3000/mcp
```
Example output:
```
HTTP/1.1 302 Found
location: /oauth2/start?rd=/mcp
```

Test the flow in a browser.

Open http://localhost:3000/mcp.

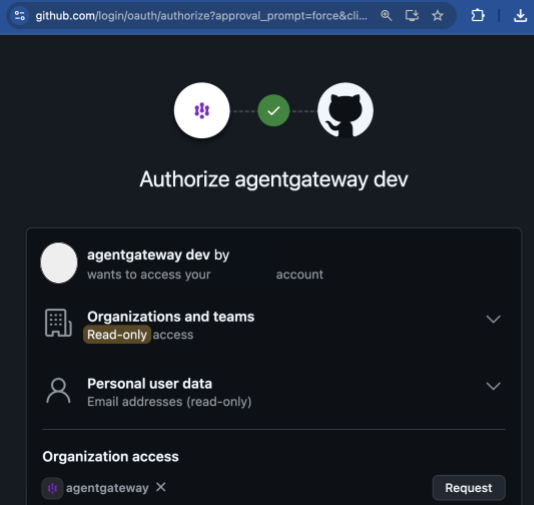

You are redirected to GitHub for authentication.
After you log in, you are redirected back to the MCP endpoint.

In the terminal where you are running agentgateway, review the logs. Notice your GitHub username and email in the github.user and github.email access log fields.

Example output:

2026-08-06T21:10:58.810727Z     info    request gateway=default/default listener=default route=default/application src.addr=[::1]:52638 http.method=GET http.host=localhost http.path=/ http.version=HTTP/1.1 http.status=406 protocol=mcp error="mcp: client must accept text/event-stream" reason=MCP duration=2ms github.user="<USERNAME>" github.email="<EMAIL@EXAMPLE.COM>"

Use other OAuth providers

OAuth2 Proxy supports many providers. To use a different provider, update the Docker command from Step 3.

docker run -d --name oauth2-proxy \
  -p 4180:4180 \
  --add-host=host.docker.internal:host-gateway \
  -e OAUTH2_PROXY_CLIENT_ID=$GOOGLE_CLIENT_ID \
  -e OAUTH2_PROXY_CLIENT_SECRET=$GOOGLE_CLIENT_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECRET=$OAUTH2_PROXY_COOKIE_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECURE=false \
  quay.io/oauth2-proxy/oauth2-proxy:latest \
  --provider=google \
  --email-domain='*' \
  --upstream=file:///dev/null \
  --http-address=0.0.0.0:4180 \
  --set-xauthrequest \
  --reverse-proxy=true

docker run -d --name oauth2-proxy \
  -p 4180:4180 \
  --add-host=host.docker.internal:host-gateway \
  -e OAUTH2_PROXY_CLIENT_ID=$AZURE_CLIENT_ID \
  -e OAUTH2_PROXY_CLIENT_SECRET=$AZURE_CLIENT_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECRET=$OAUTH2_PROXY_COOKIE_SECRET \
  -e OAUTH2_PROXY_COOKIE_SECURE=false \
  quay.io/oauth2-proxy/oauth2-proxy:latest \
  --provider=azure \
  --oidc-issuer-url=https://login.microsoftonline.com/$AZURE_TENANT_ID/v2.0 \
  --email-domain='*' \
  --upstream=file:///dev/null \
  --http-address=0.0.0.0:4180 \
  --set-xauthrequest \
  --reverse-proxy=true

Production considerations

For production deployments, consider the following.

Set OAUTH2_PROXY_COOKIE_SECURE=true and use HTTPS.
Restrict email-domain to your organization’s domain.
Use a persistent cookie secret instead of a randomly generated one.
See the OAuth2 Proxy documentation for additional security options.

Cleanup

Stop and remove the OAuth2 Proxy container.

docker stop oauth2-proxy && docker rm oauth2-proxy

Remove the working directory with the agentgateway config file.
```
cd .. && rm -rf oauth2-proxy-test
```
In your GitHub account’s developer settings, delete the OAuth app.

Learn more

External authorizationExtAuthz configuration reference Security configurationComplete security options traffic-oauth2-proxy exampleAgentgateway config example to start an OAuth2 proxy with Docker Compose
